Rear wheel drive with high functionality

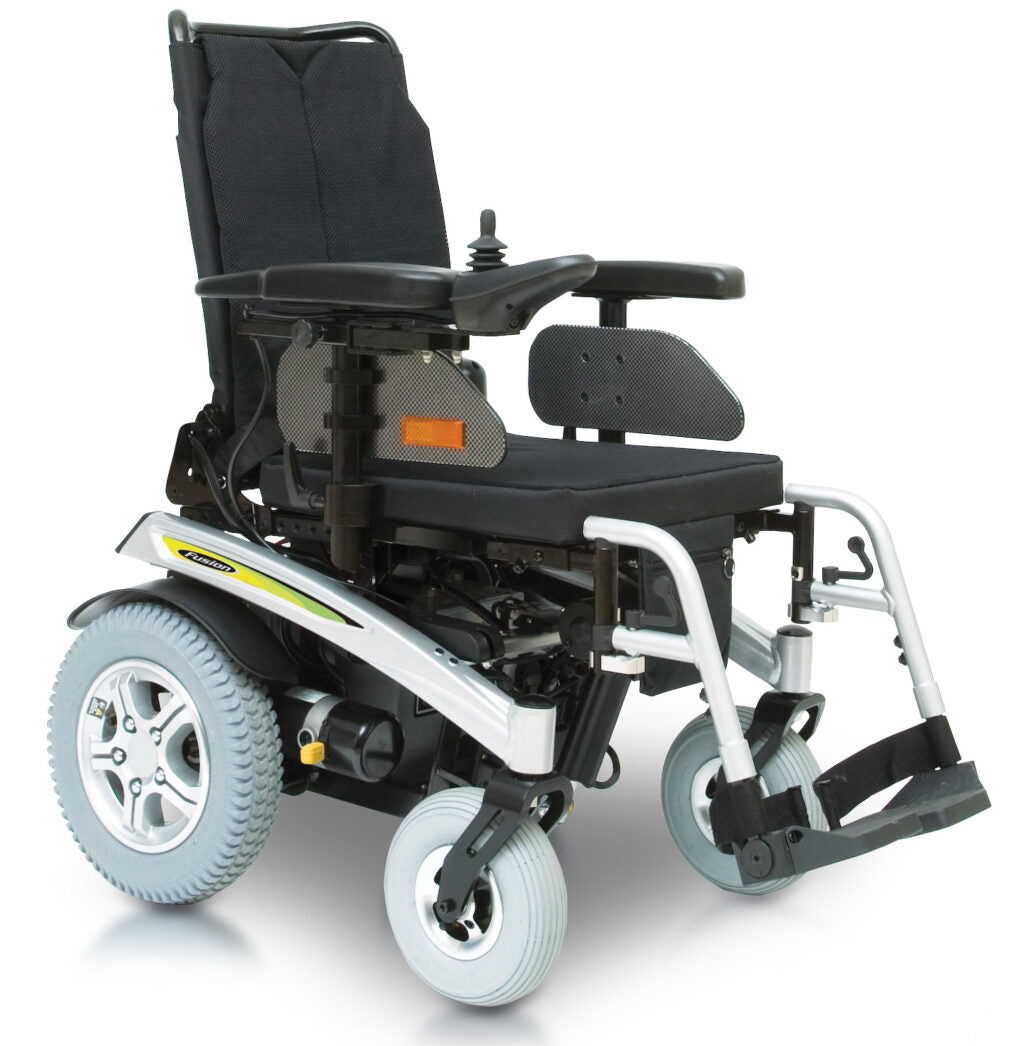

The Pride® Fusion from the 'Jazzy Power Chair range' is a rear-wheel drive power chair, which delivers exceptional control, and is available with a maximum speed of up to 4 mph (6.5 km/h). Available in configurations:
1. Power Tilt and Manual Recline
2. Power Tilt and Power Recline
The innovative, compact design of the Fusion makes it highly manoeuvrable in tight spaces without sacrificing traditional rear-wheel drive performance.
|
Specification
| Battery Weight (each) |
55 AH: 17 kg (37 lbs) |
| Weight Capacity |
21 Stone (136 kg) |
| Maximum Speed |
4 mph (6 km/h) |
| Ground Clearance |
11 cm (4.5") |
| Overall Length |
89 cm (35") |
| Overall Width |
63.5 cm (25") |
| Turning Radius |
53 cm (21") |
| Standard Controls |
PG VR2 controller |
| Heaviest Piece (when disassembled) |
|
| Total Weight (without batteries) |
74 kg (163 lbs) |
| Suspension |
Rear-wheel drive |
| Battery Requirements |
Two 12-volt, deep cycle (standard) Size: 2x 55 AH |
| Seating |
Tension-adjustable, sling back plus solid seat pan |
| Tyres |
Castors: 23 cm (9”) solid front Drive: 35.5 cm (14”) pneumatic |
| Note |
1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
|
