Heavy-duty design & outstanding performance

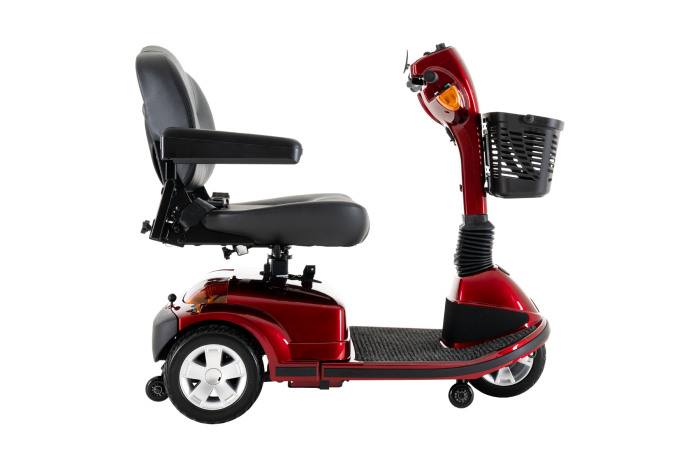

The Maxima mobility Scooter from the ‘Pride® Scooter’ range, combines heavy-duty design, with elegant outstanding performance. An impressive selection of enhanced standard features - 56 cm (22”) wide medium-back seat, ultra-heavy duty drivetrain, rear suspension and an increased weight capacity of up to 35 Stone 10 lbs. (227 kg) - make the Maxima comfortable and give it enough brawn to tackle any challenge.
Lighting
Large front headlight for increased visibility in low-light settings with directional signals
Easily Adjustable Tiller
Adjusts steering and controls to your desired position
Bumper Protection
Durable and stylish front and rear polyurethane bumper
Comfort Seat
Medium-back seat with swivel
Specification
| Weight Capacity |
35 Stone 10 lbs (227 kg) |
| Maximum Speed |
4 mph (6 km/h) |
| Ground Clearance |
8.1 cm (3.2") |
| Overall Length |
3 Wheel: 117.6 cm (46.3") 4 Wheel: 119.4 cm (47") |
| Overall Width |
3 Wheel: 64.8 cm (25.5") 4 Wheel: 64.8 cm (25.5") |
| Turning Radius |
3 Wheel: 132.1 cm (52") 4 Wheel: 137.2 cm (54") |
| Standard Controls |
LED Display |
| Heaviest Piece (when disassembled) |
32 kg (70 lbs.) Rear frame |
| Total Weight (without batteries) |
3-Wheel: 77.5 kg (171 lbs.) 4-Wheel: 80 kg (176 lbs.) |
| Seating |
Deluxe contour, medium back |
| Tyres |
Front: 7.5 cm x 25 cm (3” x 10”) solid Rear: 10 cm x 25 cm (4” x 10”) solid |
| Suspension |
None |
| Battery Requirements |
Two 12-volt, deep cycle (standard) Size: 2 x 55 AH (standard) |
| Battery Weight (each) |
55 AH: 17 kg (38 lbs.) |
| Note |
1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
